Bticino 1-Way Classe 100 Wi-Fi Kit | 364614 Classe100V16X+L3000

£1,067.45 £889.54
In stock
SKU
364614
In Stock
Free Delivery

Free Next Day Delivery on this product

Bticino 1-Way Classe 100 Wi-Fi Kit | 364614 Classe100V16X+L3000

Bticino One-Way, Classe 100 Wi-Fi Kit | 364614 Classe100V16X+L3000

This Kit from Bticino is ideal for when you need to complete a job quickly to a very high standard.

Combining the much-loved Linea 3000 entry panel with the innovative, connected Classe 100X Wi-Fi monitor. This kit combines the ease of install and reliability of a 2-wire bus system with the power and flexibility of an App based solution.

Classe 100X is the new connected video internal monitor from Bticino, combining simplicity and modern design with built-in Wi-Fi connectivity to meet all installation needs.

Also included in this kit is the LINEA 3000 push button panel with an ultra-resilient Zamak front cover, a wide-angle colour camera and a proximity reader which comes with a set of six coloured fobs and two clear discs for door lock release.

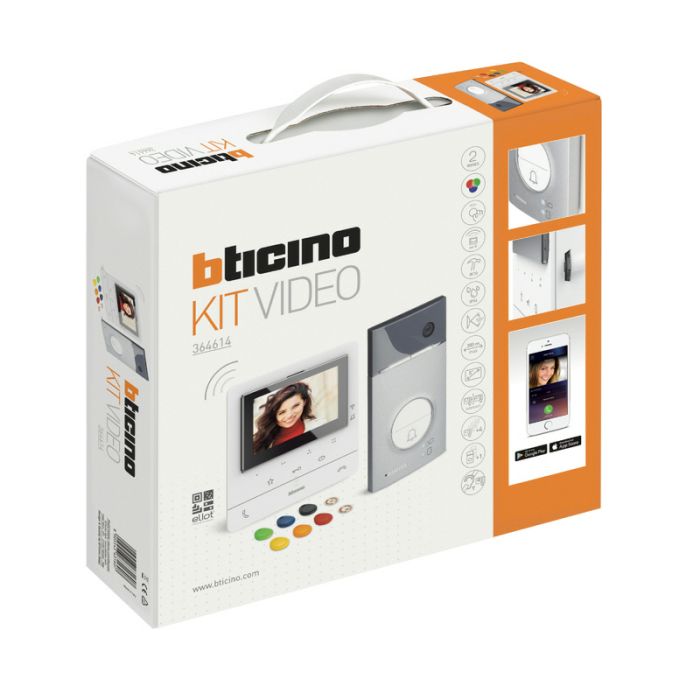

This kit includes:

  • Classe 100X Wi-Fi Video Monitor
  • Linea 3000 Video Entrance Panel
  • Six coloured fobs
  • Two clear discs for lock release

Features:

Classe 100X Wi-Fi Video Monitor

  • Built-in connectivity for constant connection with the home
  • The 5" full screen, compact display ensures great visibility
  • The thin, minimal, modern design is combined with a stylish matt white finish
  • New tilting control to answer and end the call, together with a range of touch controls for other functions
  • Immediate association with the Door Entry Classe 100X app
  • Ideal for the refurbishment of old door entry systems
  • No extra work for the installer; easier to use for the end user
  • Integrates with Netatmo security stream
Linea 3000 Video Entrance Panel

  • Wide-angle camera
  • Integrated proximity reader – up to 20 users via fobs
  • Robust Zamak finish which offers an ultra-resilient coating to your panel
  • Wall mounted installation
  • Nameplate LED lit in white

Technical Specifications:

Classe 100X Wi-Fi Video Monitor

  • 2-wire Wi-Fi hands free connected video internal unit with inductive loop and 5 colour LCD display
  • 2 physical keys for the control of the main video door entry functions: answer and end a call
  • 3 touch keys for the control of the main functions: door lock release, auxiliary relay control and entrance panel activation /scrolling
  • Can be wall mounted using bracket (supplied) or table mounted using table support accessory (2 x 344692)
  • Device must be configured
  • Side lever to adjust: colour, brightness and display contrast, audio volume, ringtone volume and Wi-Fi configuration
  • LED indicators for signalling of call exclusion and Wi-Fi connection
  • Using Wi-Fi connection, you can associate the video internal unit to the Door Entry Classe 100X app (available for Android and iOS)
  • You can manage the main video internal unit functions (receiving calls, opening the door lock, entrance panel activation /scrolling, firmware updating and additional activations) from the app
  • 4 configurable touch keys that perform different functions: e.g. intercom, additional door lock activation, generic activations depending on the configurators connected to (M)
Linea 3000 Video Entrance Panel

  • 2-wire technology
  • Recommended height: 160-165 cm
  • IP rating: IP54
  • IK rating: IK10
  • Zamak finish which offers an ultra-resilient coating to your panel
  • Back-lit buttons
  • Camera angle: 150 Degree
  • 125 KHz fob reader

Dimensions:

  • Monitor: 165 x 164.5 x 20.5 (mm hwd)
  • Panel: 190 x 100 x 26.65 (mm hwd)
More Information
Brand Bticino
System Type Video
Call Buttons 1 call button
Panel Mounting Surface Mount
Access Control Options Proximity Reader
No of Entrance Panels 1 entrance panel
Cabling Bticino 2 wire cabling
No of Apartments 1 apartment
Phone Type Receiver - Hands Free
Write Your Own Review
You're reviewing:Bticino 1-Way Classe 100 Wi-Fi Kit | 364614 Classe100V16X+L3000
Attachments
344682 Technical Data Sheet pdf(11.28MB)
344682 Instruction Sheet pdf(2.79MB)
343091 Technical Data Sheet pdf(0.35MB)
343091 Instruction Sheet pdf(2.13MB)
Bticino Classe 100 Catalogue pdf(3.18MB)
Linea 3000 Catalogue pdf(3.07MB)
Bticino Audio & Video Door Entry Systems Catalogue pdf(19.37MB)
