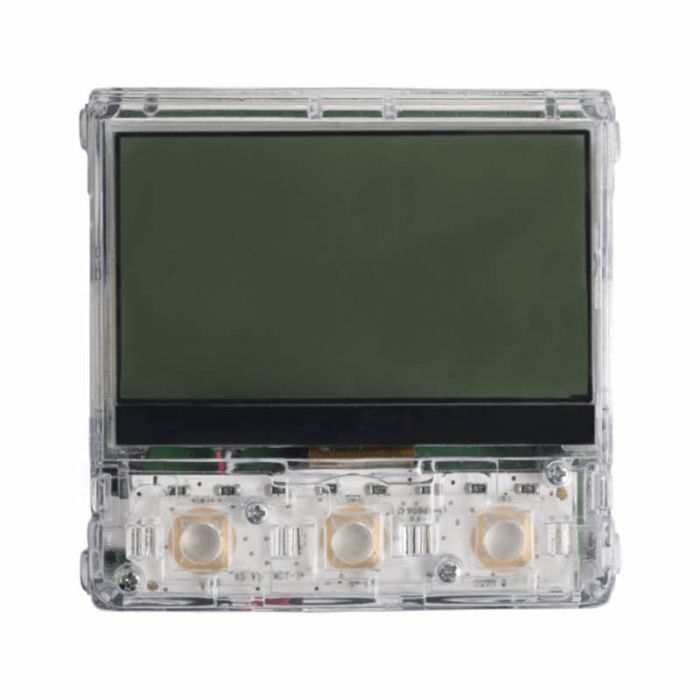

BPT - MTM Display Module for Modular Entry Panel

BPT - MTM Display Module

Please Note: This module requires an external cover and is only an internal component.

Display module for the MTM range of modular door entry panels.

Features

• Display screen
• Navigation (scroll) buttons
• Outlets for connection to other modules
• Language settings
• Ability to check through the technical information of the other modules connected to the module/panel
• -Audio or audio video module
• -Display
• -RFID
• -Push button panel
• -Keypad

Technical Data

• Power Supply: 10.7 to 18v DC
• Max. Current Draw: 250mA
• Min. Current Draw: 55mA
• Storage Temperature: -25 to 70¡C
• Operating Temperature: -25 to 55¡C
