CAME FROGAE-S24 | Frog 24v Kit For A Single Swing Gate

£1,254.56 £1,045.47
SKU
FROGAE-S24
  • This product is available to order. The lead time is normally 2 – 4 working days.
  • An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery

Free Delivery on this product

CAME FROG-AE 24v Kit with Encoder for a Single Swing Gate

CAME FROG-AE Underground Swing Gate Automation with Encoder for Gate Leaves up to 3.5m


This 24V kit for use with a single swing gate up to 400kg @ 3.5m or up to 800kg @ 2m.

FROG-AE is fully Connect compatible which enables full remote control and system management. It is compatible with the CAME Key, allowing for simple setup and backup by smartphone.

As the name implies, FROG is suited to work in damp, below ground level conditions. It is designed to automate either metal or wooden gates. In every case the pivot arm becomes the bottom hinge for the leaf.

FROG is suited to the customer who wants a reliable, long lasting gate operator, but also does not want to see any type of armature attached to the inside of the gate. Once it has been installed there is no sign of the mechanism other than the lid of the casing box which is flush to the driveway.

The irreversible gearmotor firmly locks the gates, and therefore does not need an electric locking system which can malfunction. Another advantage of the irreversible gearmotor is that they are very difficult to force open, providing added security against burglars. Other functions include Pedestrian opening allowing the opening of one leaf for limited access, and the ability to stop the operation of the gate immediately via the radio transmitter.

In the event of a power cut the FROG system has a key operated manual release mechanism which is easily accessible from both sides of the gateway.

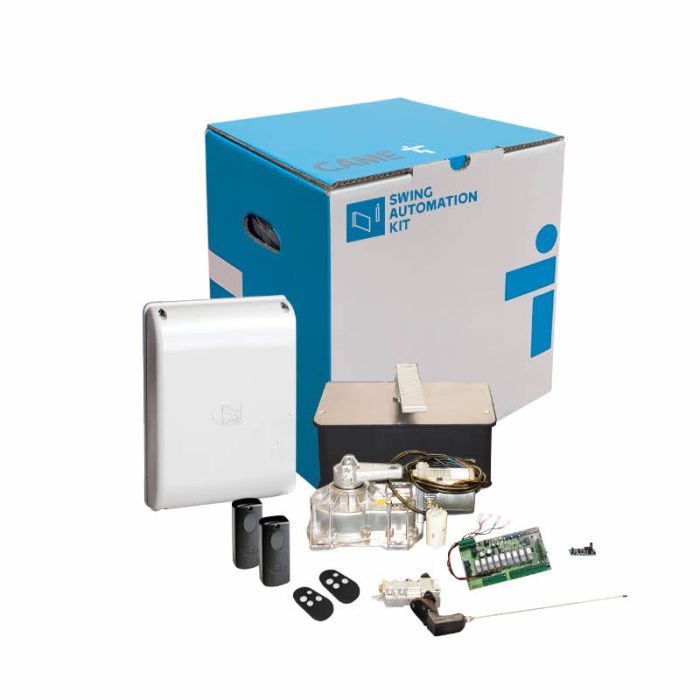

Kit Contents:

  • 1 x FROG-AE 24v A.C Gearmotor (with Encoder)
  • 1 x FROG-BN Foundation Case
  • 1 x A4364 Release Mechanism with Lever Key
  • 1 x DIR-10 Pair Safety Photocells
  • 1 x ZM3E Multi-Function Control Panel
  • 2 x TOP-432NA Dual Frequency 4-Button Fixed Code Transmitters (433.92MHz)
  • 1 x TOP-A433N Tuned Antenna
  • 1 x AF43S Plug-in Radio Frequency Code (433.92MHz)

Features:

  • Watertight
  • Easy installation
  • Gate can be opened with key or lever in case of power cut

Technical Specifications:

  • Stainless steel rustproof case
  • Operating mechanism is hidden from view
  • FROG-AE is fully Connect compatible, allowing full remote control and system management
  • FROG-AE is compatible with the CAME Key, allowing for simple setup and backup by smartphone.
More Information
Brand CAME
