BPT AZ-98 | Audio Module For Old Style Panels
£90.98
£75.82
SKU
AZ/98
- This product is available to order. The lead time is normally 4 – 6 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
CAME BPT AZ-98 | Audio Module For Old Style Panels

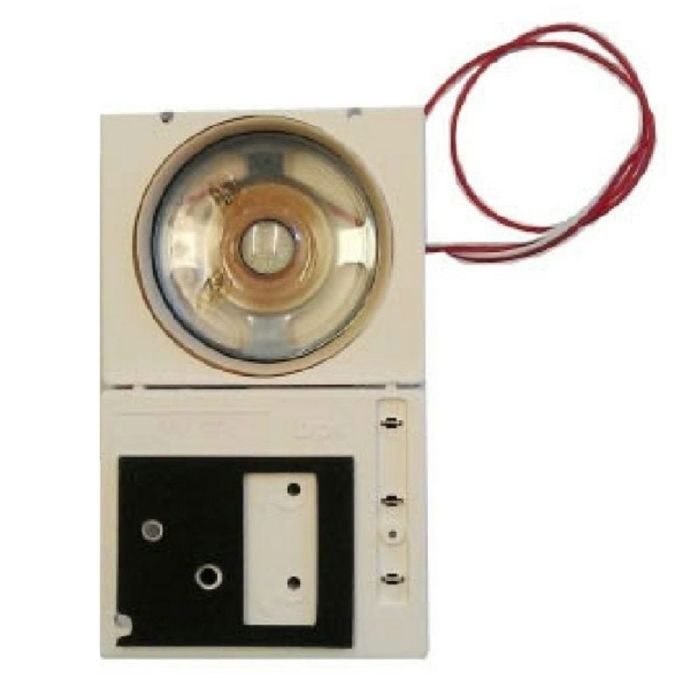

The AZ-98 from CAME BPT is a speaker & microphone unit for Z + ZC panels. The AZ/98 phonic group may be installed in audio and video e
BPT AZ-98 | Audio Module For Old Style Panels
The AZ-98 from BPT is a speaker & microphone unit for Z + ZC panels. The AZ/98 phonic group may be installed in audio and video entry systems 100 or 200 series.
For optimum audio fidelity, the microphone is where possible removed from the basic unit, and remotely installed elsewhere (max.250 mm).
Features:
- Working temperature range: from -15 degrees C to +50 degrees C.
Technical Specifications:
- Loudspeaker L/98 Imput impedance: 800 Ohm; Rated power: 0.2W.
- Microphone M/98 Supply voltage: 11V DC. Current demand: 50mA max. (10mA quiescent).
| Brand | BPT |
|---|---|
| Audio or Video | Audio |
| Accessories & Options | Entry Panel Speaker units (QQ) |
