Bell CP106-5 | 5 Button Surface Audio Entry Panel with Keypad
£255.60
£213.00
SKU
CP106-5
- This product is available to order. The lead time is normally 3 – 5 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

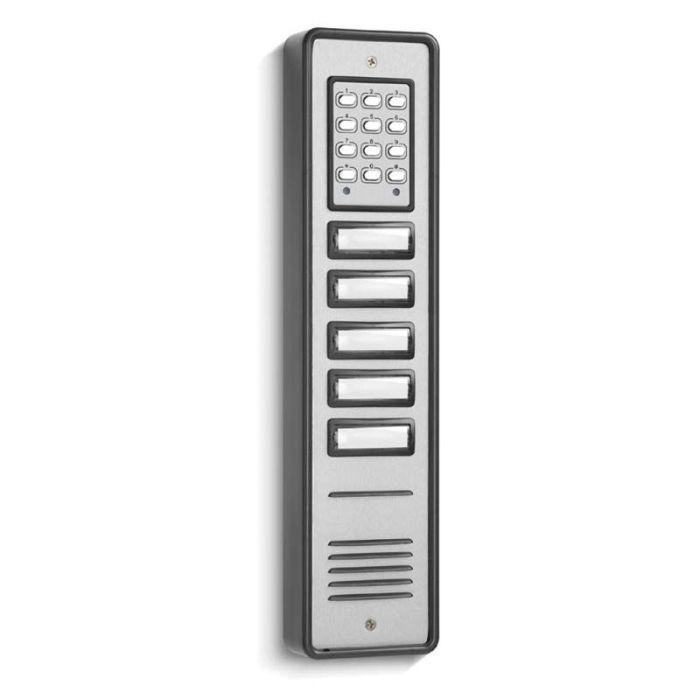

Bell CP106-5 | 5 Button Surface Audio Entry Panel with Keypad
Bell CP106-5 | 5 Button Surface Audio Entry Panel with Keypad
This five button surface mounted entry panel is manufactured from 3 mm anodised aluminium and features an integrated keypad for access control.
The standalone keypad can store up to ten access codes, one to eight digits each. It has both locking outputs (fail locked and fail unlocked), making it suitable for a range of installations. All data including access, user programs, and programmed features is stored within the panel and can be retained even if the power is lost.
The LEDs below the keypad notify the user of the system status: green stands for door open/ in operational use, and red indicates an invalid code entry.
Please Note: This panel requires the Bell model 61 speaker amplifier unit.
Features
- Data is retained even if power is lost
- Secure programming via the keypad
Technical Specifications:
- Vandal resistant screws at the front of the panel
Dimensions | |
| 488 x 100 x 43 mm (hwd) | |
| Brand | Bell |
|---|---|
| Audio or Video | Audio |
| Call Buttons | 5 call buttons |
| Mounting | Surface Mount |
| Finish | Aluminium-Silver |
| Access Control Options | Keypad - built into panel |
| Range | Bell SPA range |
| Cabling | Bell Audio 4 + n |
