Bell Keypad Module with 10 User Codes for CP106 Panel
£95.68
£79.73
SKU
C106
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

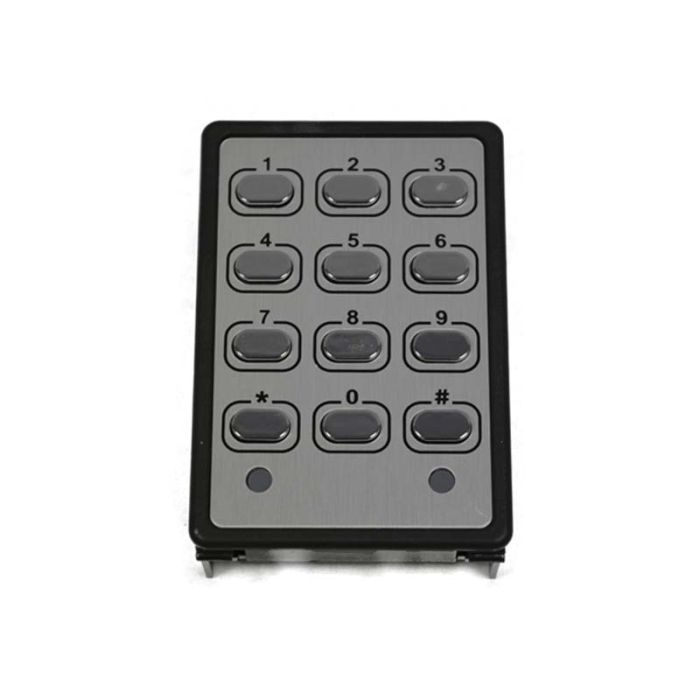

The Bell C106 is a keypad module for the Bell CP106 SPA door entry panel. The keypad has up to ten access codes and LED indicators for door status.
Bell C106 Keypad Module with 10 User Codes for CP106 Panel
The standalone keypad is able to be programmed with up to ten access codes. The lock release will only operate for a set period after the code has been entered. The keypad has outputs for fail locked and fail unlocked.
LEDs on the keypad will indicate the system status to a user, simply green for open/ operating, and red will indicate an invalid code entry.
Codes are limited in length between 1 to 8 digits. Having up to 10 access codes available enable setting restrictions of access in certain areas for different users, as well as timed access (requires time clock).
Features:
- Non-volatile memory (codes will not be reset if power is lost)
- Two Time Zones for Staff / Executive operation
- Secure programming via the keypad
- Lock timer
Technical Specifications:
- Cable requirements: 0.5 mm: Twisted pair, e.g. BT spec CW1308 or CAT5 UTP. 1.0 mm: 1.0 mm2 Twin mains flex
| Brand | Bell |
|---|---|
| Access Control Options | Keypad - built into panel |
| Range | Bell SPA range |
