Bell 16 Way Flush Audio Entry Kit with VR Panel and Keypad

Bell CS10916/VR 16 Way Flush Audio Entry Kit with VR Panel and Keypad

Manufactured by Bell BSTL, this 16-way door entry system delivers a comprehensive audio entry solution with coded access for enhanced security, enabling the storage of up to ten unique user access codes (1-8 digits). The system features a highly durable vandal-resistant entrance panel, equipped with a stainless steel blue-illuminated keypad module, designed for reliable operation and clear visibility in all conditions. The tamper-proof keypad provides both fail-secure and fail-safe lock outputs, along with clear LED indication for operational status. This complete kit also contains sixteen model 801 wall-mounted audio telephones, ensuring clear and consistent communication for all residents. Everything required for a full installation is included, with the exception of the necessary cabling. For properties requiring a trades button, the optional model TRCS can be easily added to the order, providing specialized access for service personnel.

Features:

• Coded access system with an independent controller.
• Up to 10 unique access codes (1-8 digits each).
• Blue illuminated coded keypad.
• Vandal-resistant entrance panel housing a stainless steel keypad.
• Wide design audio telephone suited for all.
• Additional telephones can be added to each station.
• Everything is included for the installation except for the cable.

Technical Specifications:

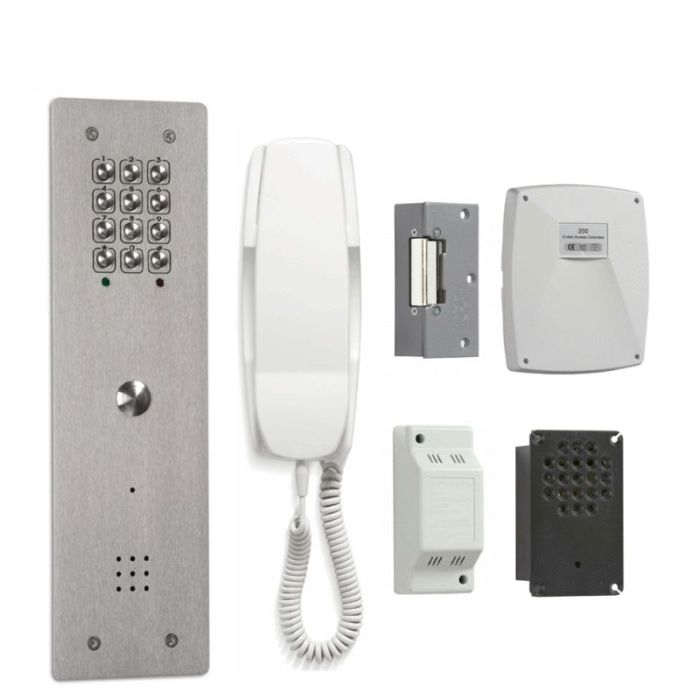

• Kit includes: 1 x door entry panel with keypad (Model CP10916/VR), 1 x speech unit (Model 61), 1 x independent boxed controller (Model 200), 16 x audio telephones (Model 801), 1 x rim lock release (Model 203), 1 x 12V DC power supply (Model 340C).

Dimensions:

• Panel: Flush mounted (Dimensions not specified).
• Telephones (801): Wall mounted (Dimensions not specified).
