Atigo 7 Inch Colour Wi-Fi Monitor with IPS Full Angle TFT Screen

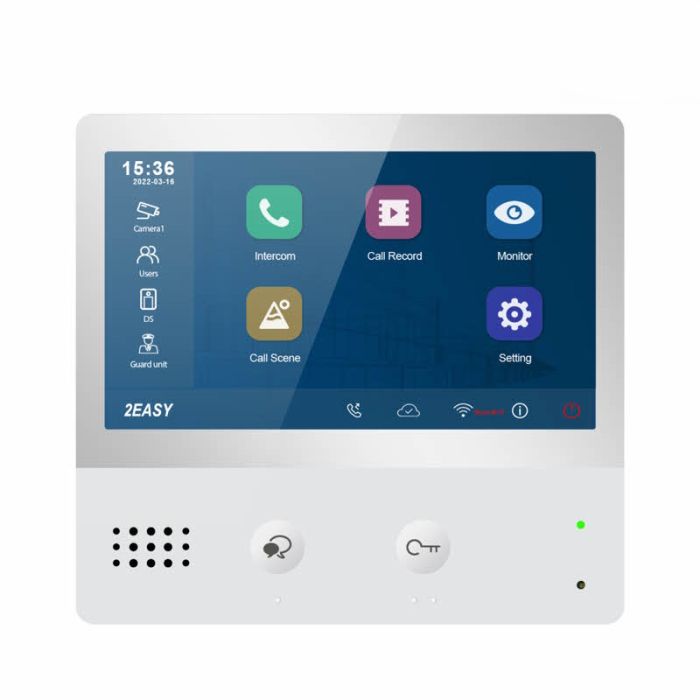

Atigo A1714 7 Inch Colour Wi-Fi Monitor with IPS Full Angle TFT Screen

The Atigo A1714 is a 2 wire colour monitor which has been packed full of features such as 7 inch IPS (in-plane switching) full angle TFT screen, high-resolution IP camera connect and integrated Wi-Fi. It is an upgraded version of the A1712.

It also features Quad and PiP (picture in picture) View:

• The picture-in-picture display allows the user to see two images from different sources at the same time during the call, which is convenient for the user to see the visitor intuitively and concretely.
• The Quad display allows the user to view four images quickly and simultaneously from different video resource, and to quickly switch and zoom in on a screen by one click.
• These features require the system to access the cameras or set the camera proxy settings.

This highly functional 7 inch monitor has an unlock button, Up/Down buttons for functional control of the monitor and 2 door unlock buttons. This monitor also allows for calls to be diverted to a phone via the 2Easy App should they not be answered by the monitor.

The functions of the Atigo A1714 allow the user to set the unlocking parameter, the time and date format, adjust the image scale and provides control over the cameras view and zoom.

For installation: Use the screws to fix the mounting bracket to the wall using the mounting box (The suggested installation height of the unit is 140 - 160cm). Connect the 2 wire cables to the unit and then mount the unit to the mounting bracket.

Features:

• Simple and intuitive menu with navigation
• 7 Inch IPS Full Angle TFT display
• Ultra-thin design (22mm)
• High-Resolution IP camera connect
• Quad view: display of max. 4 screens at one time
• Picture-in-picture view: display two images from different sources
• App: Door camera call divert and IP camera monitoring
• LED indicator for calling status
• Do not disturb indicator
• Wall or desk mount (with A7100 kit)

Technical Specifications:

• Material: high quality ABS plastic
• Power supply: 20-28 V DC
• Power consumption: Standby 1.8W; Working 8.16W
• Monitor screen: 7 inch digital colour
• Display Resolution: 1024x600 (IPS Screen)
• CODEC: H.264 - (main, high profile); H.265 - 1080P, max 2K (2048*1152)
• Video: APP - 480P/SD (VGA) 640*480 (4:3); Full Screen - 720P/HD (WXGA) 1280*720 (16:9)
• Quad: 480P/SD (VGA) 640*480 (4:3)
• PiP: 480P/SD (VGA) 640*480 (4:3)
• Video signal: 1Vp-p, 75Ohm, CCIR standard
• Memory: with SD card, 3s video memory; with SD card, 10s video memory, max. 512G
• Wiring: 2 wires non-polarised

Dimensions:

• 161 x 174 x 22 (hwd mm)
