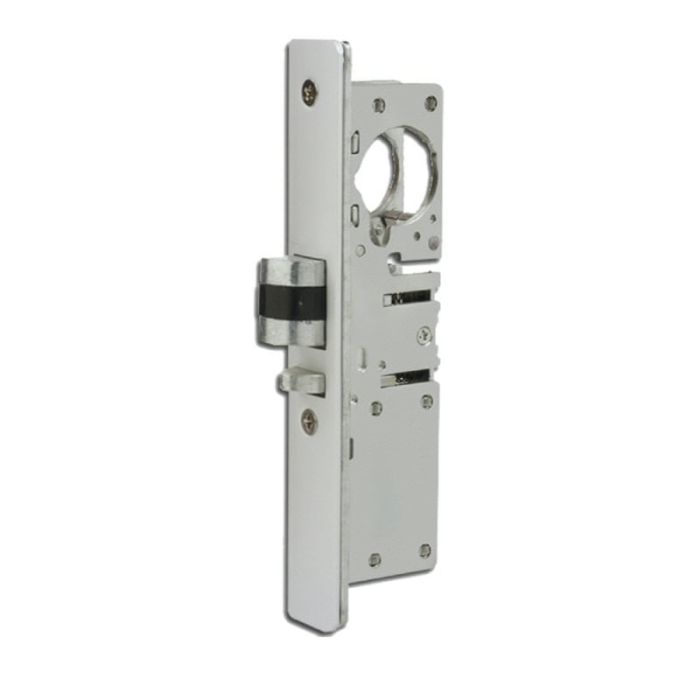

Alpro 5245101 RH Round Mortice Cylinder Deadlatch 1 1/8in

Alpro 5245101 right hand round mortice cylinder deadlatch with 1 1/8 inch (28.6mm) backset, body only. Accepts standard 15/32 inch mortice key or thumbturn cylinders with ANSI standard cutouts. Designed for access control applications on doors with 3mm door gaps and compatible with electric strikes for remote release.

This is a body-only unit — cylinder, handles and fixing kit are ordered separately. The deadlatching function prevents the latch bolt from being forced back when the door is closed. Compatible with the Alpro 459 paddle handle when used with a cam plug. Handing is determined from the outside: RH means door hinges are on the right.

About This Product

The Alpro 5245101 is a right hand round mortice cylinder deadlatch with a 1 1/8 inch backset for professional access control installations. It is designed for installers who need a mechanical deadlatch that integrates with electric strikes for remote door release on aluminium or steel doors. The larger backset suits door profiles where the lock centre is further from the door edge.

Key Features

• Right hand operation (door hinges on right viewed from outside)
• Accepts standard 15/32 inch mortice key or thumbturn cylinder
• ANSI standard cutouts for industry standard door preparations
• Latch hold back facility
• Compatible with electric strikes for remote access control
• Designed for 3mm door gaps
• SAA faceplate finish
• 3 year guarantee

Technical Specifications

• Lock Type: Round mortice cylinder deadlatch
• Handing: Right Hand (RH)
• Backset: 1 1/8 inch (28.6mm)
• Dimension A: 45.2mm
• Cylinder Type: Standard 15/32 inch mortice key or thumbturn
• Faceplate Width: 25mm
• Faceplate Finish: SAA
• Cutout Standard: ANSI
• Door Gap: 3mm
• Overall Length: 174.6mm
• Body Height: 173.0mm
• Cutout Height: 147.4mm
• Body Width: 25.4mm
• Latch Projection: 12.7mm
• Latch Height: 36.4mm
• Guarantee: 3 years

Compatibility

Compatible with Alpro electric strikes including the AL110 and EL900 series for remote access control. Compatible with the Alpro 459 paddle handle (cam plug required). Accepts standard 15/32 inch mortice key or thumbturn cylinders.

Dimensions
• 174.6mm (L) x 25.4mm (W) x 30.5mm (D approx), Latch Projection: 12.7mm
