Alpro Concealed Door Closer, Side Loading (Size 2), No Hold Open, 12mm
£163.45
£136.21
SKU
510200T1-U
- This product is available to order. The lead time is normally 7 – 9 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

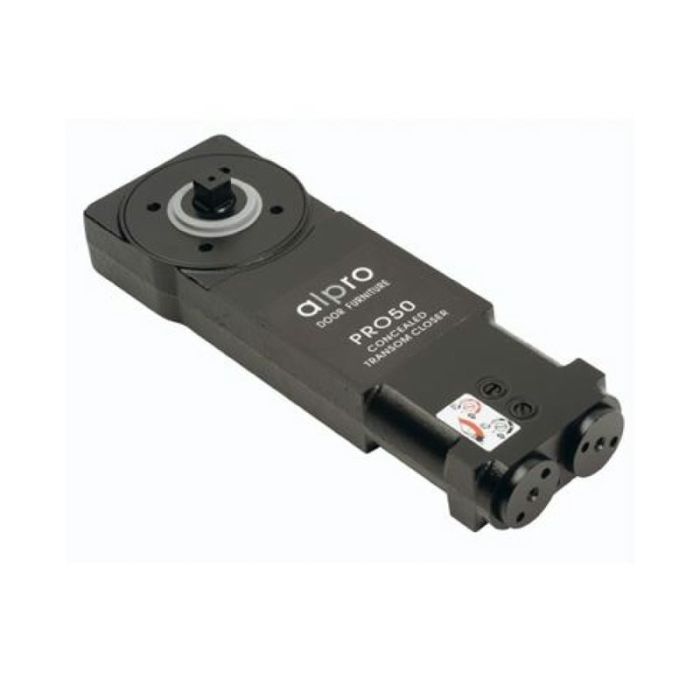

Alpro 510200T1-U Concealed Door Closer (Transom Overhead) - Side Loading Option , Medium Duty (Size 2) - No Hold Open, Standard 12mm Spindle Length
Alpro 510200T1-U Concealed Door Closer (Transom Overhead) - Side Loading Option , Medium Duty (Size 2) - No Hold Open, Standard 12mm Spindle Length (Includes 51A2 Arm, 51A4 Pivot and Fixings)
The concealed overhead transom door closer is designed to be concealed within the transom header bar of the door. It provides controlled closing of a single or double action aluminium door or doors.
Features:
- Dual Closing Speed
- Adjustable spring strength
- Retrofit Replacement Items Available
- 3 Year Guarantee
- Medium duty (size 2) - no hold open
- Side Loading Option (includes 51A2 Arm, 51A4 Pivot and fixings)
Technical Specifications:
- Concealed thickness: 37mm
- Standard Spindle Length: 12mm
- Maximum door width: Medium spring - 751mm to 950mm (size 2)
- Maximum door weight: 100kg - Standard pivot, 120kg - Heavy duty pivot
- Maximum door height: 2540mm
- Closing speed: Dual - initial closing speed is factory preset. Final closing speed is full adjustable after installation
- Lubrication: Stable hydraulic fluid suitable for most climatic conditions and constant lubrication
- Function: Built in positive back stop and optional 90 degree hold open position
Dimensions:
- 293 x 90 (hw mm)
| Brand | Alpro |
|---|
