Aiphone 5 Call Wall Mount Audio Master Station
£251.94
£209.95
SKU
LEF-5
- This product is available to order. The lead time is normally 7 – 9 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

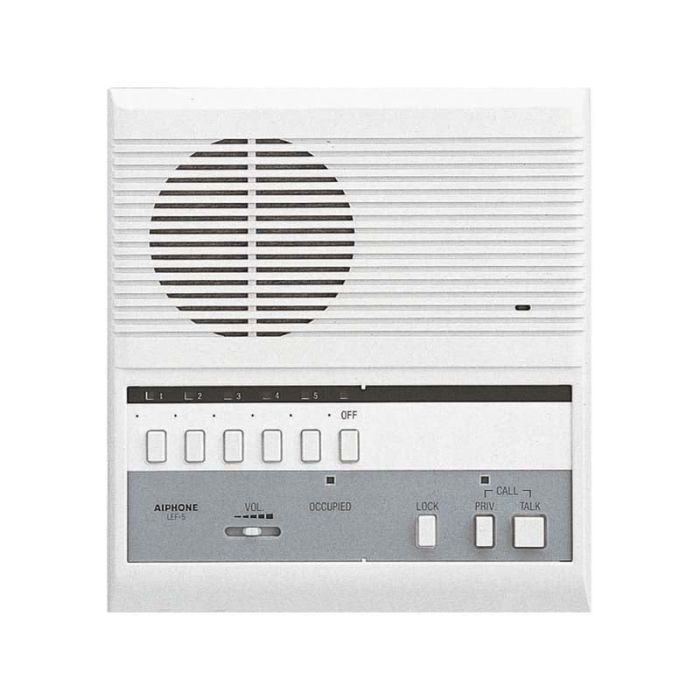

The Aiphone LEF-5 is a 5 call, wall mounted audio master station. The LEF-5 is compatible with Aiphones LEF series of handsfree intercoms.
Aiphone LEF-5 | 5 Call Wall Mount Audio Master Station
This audio station is part of the LEF series of handset free intercom systems, this unit features an intercom speaker with call button and a selective monitoring and door release function. The privacy button can also be used when receiving calls, this will stop the caller from being able to hear any audio until the function has been disengaded.
The master station can selectively call and talk to any person within the system. It communicates with other units by simply pressing the push-to-talk button, while the person at the receiving sub station speaks hands free.
The main station is used to distribute power to up to three doors or sub units and it manages communication. The installation of the device is simple as it uses Aiphone two wire cabling.
Please note: The power supply is not included and will have to be purchased separately, add model PS-1225UL to your order.
Features:
- Station selector switch
- Mixed system of sub and master stations
- Push-to-talk communication
- Ring OFF button
Technical Specifications:
- Capacity: Up to six stations, intermixable
- Power supply: 12 V DC, 300 mA
- Wiring distance: 650 w/22AWG - 1600 w/18AWG
- Speaker sensitivity: 40dB
- Frequency response: -3dB, 770-6800Hz
Dimensions:
- 206 x 190 x 55 mm (hwd)
| Brand | Aiphone |
|---|
