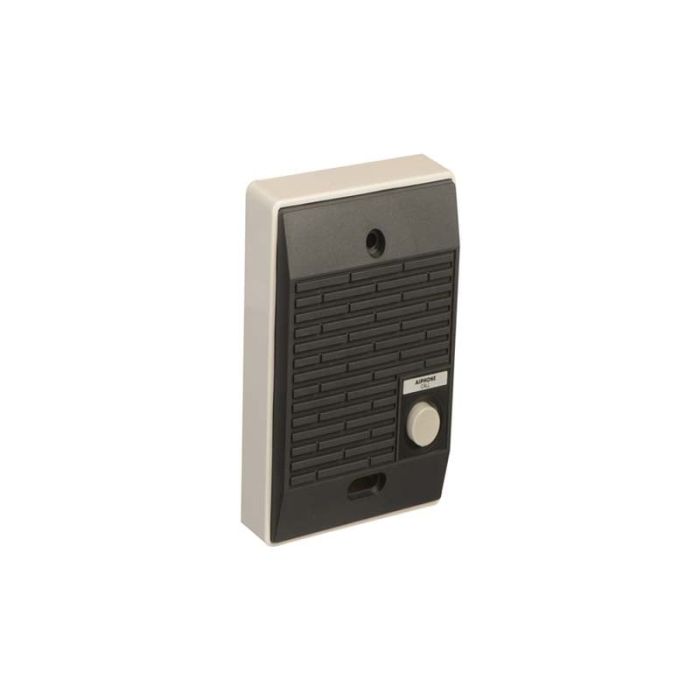

Aiphone LE-D Single Call Button Surface Mount Door Station

The Aiphone LE-D is a single call button surface mount audio door station designed for use with LEF series master stations. It provides one-way call-in and two-way audio communication for door entry applications.

Aiphone LE-D Surface Mount Audio Door Station for LEF Series

The panel is weather resistant and manufactured from ABS plastic. It is surface mounted using a two-gang back box. In single master systems, the LE-D is wired using 2-wire cabling with the shorting link attached. For intermixed systems with multiple masters, use 3-wire cabling with the shorting link removed.

The LE-D connects to LEF master stations via terminals 1, E and -. It is compatible with the LEF-3 (up to 3 door stations), LEF-5 and LEF-10/LEF-10S master stations. When used with the BG-10C selective call adaptor, door release functionality can be integrated via RY-PA relay adaptors.

Key Features

• Single call button for door entry
• Weather resistant ABS plastic construction
• Surface mount on two-gang back box
• 2-wire or 3-wire connection options
• Compatible with LEF-3, LEF-5, LEF-10 and LEF-10S masters
• Door release support via RY-PA relay adaptor
• Compatible with BG-10C selective call adaptor

Technical Specifications

• Speaker impedance: 20 ohms
• Terminals: 1, E, -
• Wiring distance: 400 ft with 24 AWG; 650 ft with 22 AWG
• Recommended cable: 822203 - 3 conductor, 22 AWG, shielded
• Mounting: Surface mount (two-gang back box)

Dimensions

• 120 x 88 x 28 mm (H x W x D)
