Aiphone GT-VBC | Video Bus Control Unit For GT Series

£125.88 £104.90
SKU
GT-VBC
  • This product is available to order. The lead time is normally 2 days
  • An accurate despatch date will be confirmed with you once order is received by our sales team (office hours).
Free Delivery

Free Delivery on this product

Aiphone GT-VBC | Video Bus Control Unit For GT Series

Aiphone GT-VBC | Video Bus Control Unit For GT Series

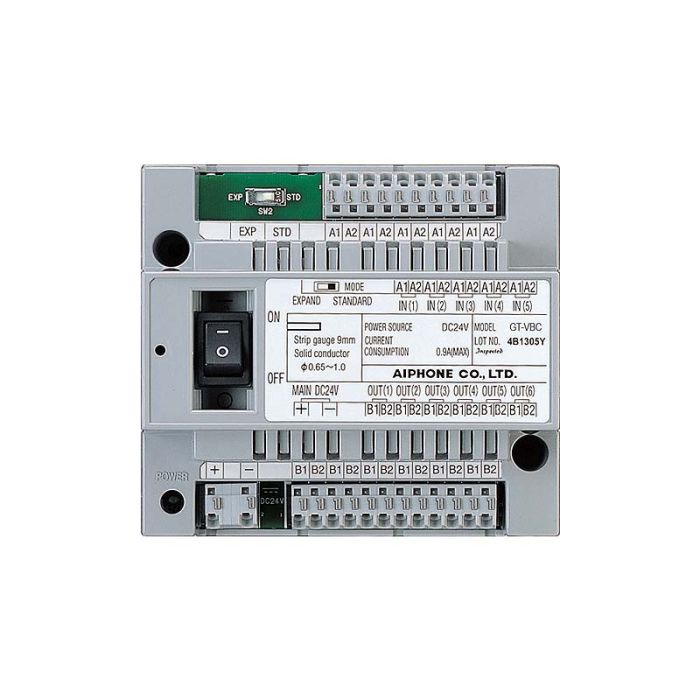

This bus control unit from Aiphone is required for use in a GT series video door entry installation. It is powered by the PS-2420D from the audio control unit.

The unit is fitted with a green operation LED and equipped with an on/off switch. It is capable of supporting up to forty-eight monitors and up to five entrances. The control unit can be DIN mounted or fixed on the wall.

Please note: This control unit would require the GT-BC which has to be purchased separately.

Features:

  • Supports up to 48 monitors
  • Can be wall or DIN rail mounted

Technical Specifications:

  • Power supply: 24 V DC
  • Current consumption: 0.9 A
  • Video Distribution: 5 outputs

Dimensions:

  • 108 x 122 x 61 (hwd mm)
More Information
Brand Aiphone
Video Distribution 5 outputs
Cabling Aiphone 2 wire cabling
System Type Video (colour)
Write Your Own Review
You're reviewing:Aiphone GT-VBC | Video Bus Control Unit For GT Series
Attachments
Aiphone GT Series installation instructions pdf(7.1MB)
