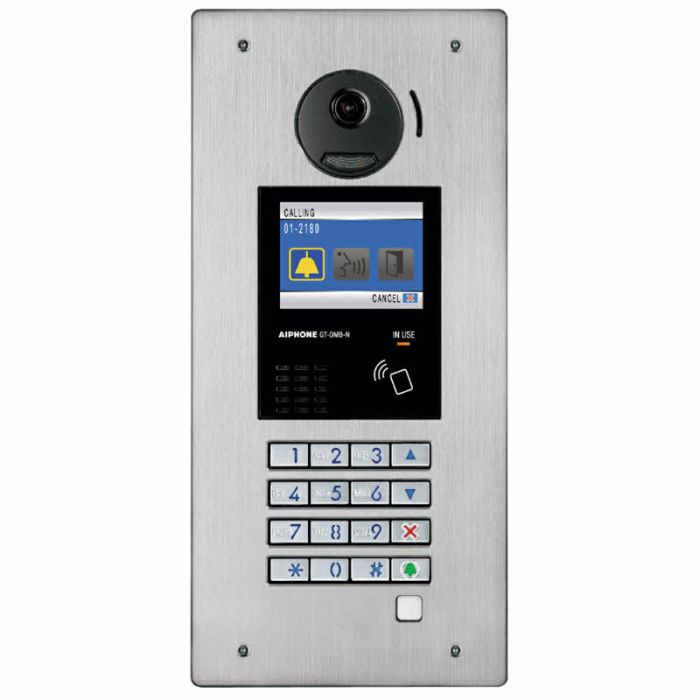

Aiphone 3-in-1 Video Entrance Station with NFC Reader

Aiphone GT-DMB-N GT Mono-bloc Entrance Station with Built-in NFC Reader and LCD Screen

This is a video entrance station with a stainless-steel panel for the GT Series multi-tenant video intercom system.

It is equipped with a pan tilt zoom (PTZ) camera which captures a 170 degrees wide angle view. The keypad allows for direct dialing and authorised entry access.

A 3.5 colour LCD displays a greeting message, tenant directory, and system status. The colour LCD may be set to energy saver mode and can activate via the built-in motion sensor.

A built-in user guide can be configured to display one of six languages. The guide provides operational assistance by displaying a visual icon, along with the option for audible instruction.

Requires GF-3B flush box or SBXGTDMB surface box.

Features:

• Hands-free audio communication
• Video camera at entry
• Direct dialing, alphabetical scrolling, or jump scrolling by letter to select tenant name
• Up to 500 names/numbers can be stored in the display module
• Alphanumeric room numbers and/or names can be programmed
• Access control keypad with up to 500 unique codes to activate door release
• Scrolling welcome message, up to 160 characters, adjustable scroll speed
• 3.5 colour LCD displays tenant names and their dialing number
• Motion sensor to activate LCD
• PC program for loading tenant information, access codes, and welcome message (via USB)
• Android program for loading resident information, access codes, and welcome message (via NFC)
• Stainless steel weather resistant construction

Technical Specifications:

• Communication: Hands-free (VOX)
• Camera View Area: 100 degrees vertical x 170 degrees horizontal
• Door Release: Form C dry contact, 24V AC/DC, 4A
• Protection Rating: IP43
• Temp. Rating: -10 to 60 (C)
• Material: Stainless-steel
• Mounting: Flush mount with GF-3B (sold separately), surface mount with SBX-GTDMB (sold separately)
• Power: 24V DC, use specified number of PS-2420ULs per system configuration
• Calling: Electronic ring tone from entrance station
• Capacity: Max. 16 entrance stations per system, Max. 4 video guard stations per system, Max. 500 tenant stations per system & Max. 4 tenant stations per unit
• Wiring Distance: GT-BC to farthest entrance station: 980, GT-BC to farthest tenant station: 980, GT-VBC to farthest entrance station: 980 & GT-VBC to farthest tenant station: 500
• Talk Path: Single channel with privacy
• Weight: Approx. 1.2kg

Dimensions:

• 320 x 150 (mm hw)
