AES E-LOOP Inground Commercial EXIT MODE

AES EL00IG-K E-LOOP Inground Commercial EXIT MODE

The Inground Wireless Vehicle Detection System uses magnetometer sensors to detect the presence and movement of vehicles. These detections are transmitted to a nearby transceiver for gate activation. The sensors are installed in the ground of entry or exit passages using sikaflex, contain a replaceable Lithium battery, and can withstand almost any vehicle.

Note: Gate or door controller must have a dedicated open input and auto close function enabled.

Both e-loop models are available in two modes: PRESENCE MODE WITH ADDED RADAR PROTECTION OR EXIT MODE.

Installation in 3 simple steps:

• 1. Code in the e-Loop
• 2. Core bore 89mm hole 70mm deep and secure using flexible mastic (3.5" hole 2.5"Ñ2.7" deep)
• 3. Calibrate the e-Loop... and youÕre ready to operate in less than 30 minutes

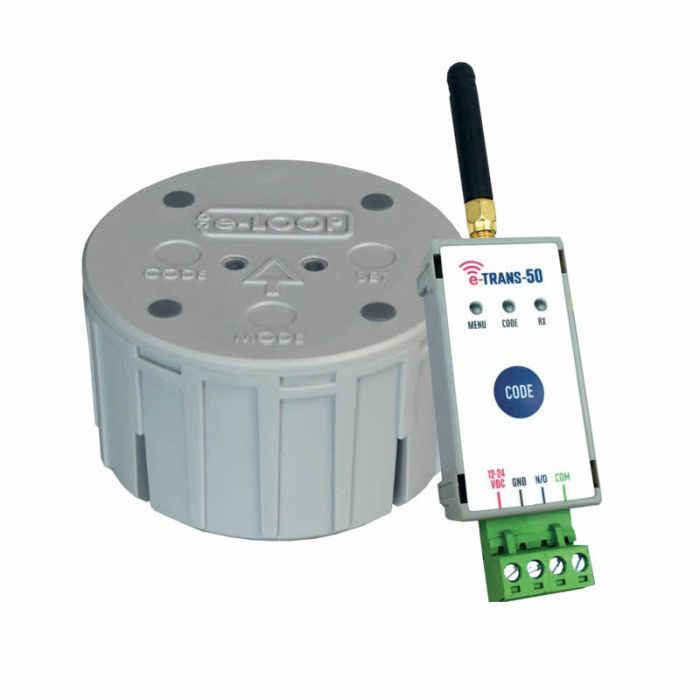

This Kit Includes:

• 1 x e-Loop Inground Exit mode
• 1 x e-Trans 50 (transceiver)
• 1 x Magnet

Features:

• Fast and simple installation (quick non-permanent installation)
• Not effected by ground movement
• Range up to 50 metres/yards
• Exit Mode
• Commercial Inground E-loop Flush Mounted
• Lower power consumption: 3-axis magnetometer for vehicle detection
• Compact design
• Compatible with various gates
• Reliable radio communications with transceiver

Technical Specifications:

• 8 Hz sampling rate
• Auto-calibration
• Exit/Entry detection mode
• 14500 mA battery (included) giving up to 6-10 years of battery life (depending on mode)
• Top access for changing the battery
• High security 128-bit encryption
• IP rating: IP68

Dimensions:

• Recesses into the driveway Ñ 55mm inground height x 89mm diameter.
