Adams Rite 7111 12VDC Fail Safe 10 Inch Faceplate Electric Release SC

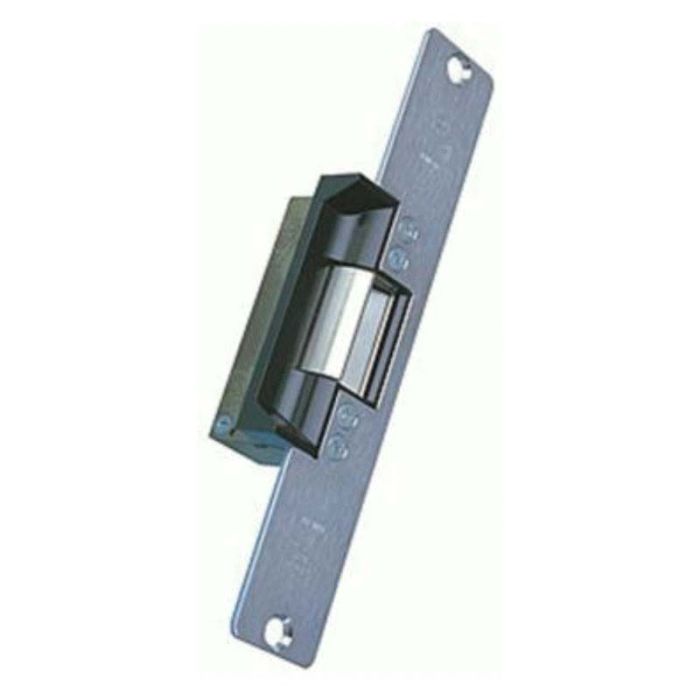

Adams Rite 7111-315-652 12VDC Fail Safe 10 Inch Faceplate Electric Release SC

The Adams Rite 7100 Series is for remote use access control of any door equipped with Adams Rite 4700 series (or similar) deadlatch.

The 7110 and 7111 electric strike have flat faceplates for mounting in the frame or the inactive leaf of a pair of doors.

The 7110 has a 201mm long faceplate and the 7111 has a 260mm faceplate for installation into timber and steel doors

Features:

• Suitable for use on timber and steel doors
• The compact mechanism fits into a timber or steel jamb section as shallow as 44.45mm
• Electrical actuation unlocks the strike jaw, releasing the latchbolt so the door can be opened without operating the latch itself
• Facility to change duty from failsafe to fail-secure and vice-versa
• Non-handed

Technical Specifications:

• Current Draw: 12vAC=1.48A, 12vDC=0.332A, 24vAC=0.74A, 24vDC=0.19A (nominal). DC intermittent and continuous units are silent, AC intermittent units buzz on operation
• Voltage Tolerance: +/- 10%
• Powered by: Internal solenoid
• Monitoring: (Optional) Single: Latch only
• Duty: Fail-safe or fail-secure (convertible without additional parts). DC power supply required for fail-safe operation.
• Jaw Strength: 907kg (2000lbs)
• Case: 85.6mm x 28.6mm x 41.6mm. Zinc aluminium alloy
• Mechanism: Stainless steel internal blocking mechanism
• Strike Opening: 36.5mm x 15.9mm x 12.7mm. Stainless steel bolt retainer jaw
• Door gap: Minimum 3mm (1?8), operational door gap 3-5mm.
• Faceplate: Aluminium. 201.6mm x 36.3mm (7110), 260.3mm x 36.3mm (7111)
• Subcover: Basic subcover lip will suit a 44.45mm (1 3?4) thick door that closes flush with jamb edge. For extended bolt-on subcovers see ordering codes.
• Standards: ANSI/BHMA 156.5 Grade 1. UL Listed for burglary resistance
