Adams Rite 7100-510-628 | Electric Strike 24V DC Fail Locked SAA

Adams Rite 7100-510-628 | Electric Strike 24V DC Fail Locked SAA

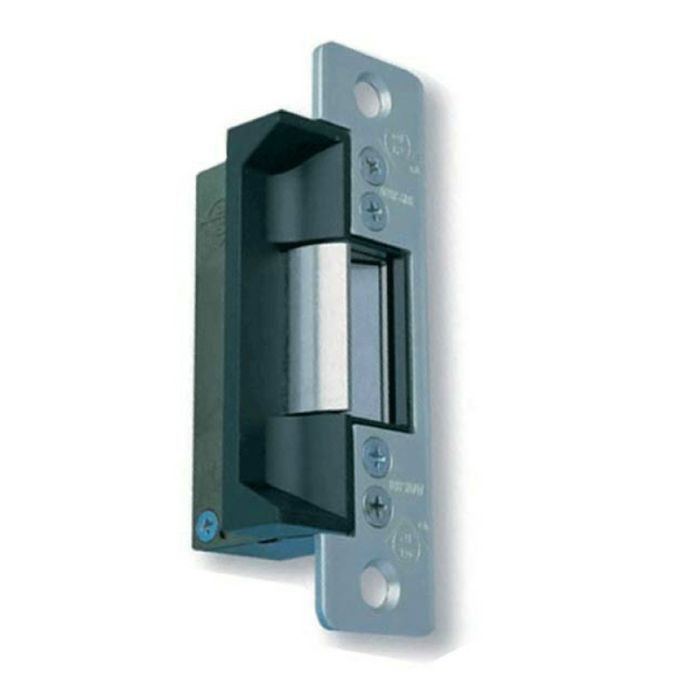

This electric strike with an aluminium finish is used for remote access with the Adams Rite 4700 series (or similar) dead latch.

The strike is engineered with stainless steel for strength and security. This mechanism is suitable for aluminium doors, has a 907kg holding force and additionally comes with a 3 year manufacturers warranty.

Features:

• Facility to change duty from fail-safe to fail secure and vice-versa.
• Non-handed.
• The compact mechanism fits into an aluminium jamb section as shallow as 44.45mm.
• Electrical actuation unlocks the strike jaw, releasing the latchbolt so the door can be opened without operating the latch itself.
• The 7100 series have flat faceplates for mounting in the frame of a single action single leaf doors.

Technical Specifications:

• Current Draw: 12V AC=1.48A, 12V DC=0.332A, 24V AC=0.74A, 24V DC=0.19A (nominal).
• DC intermittent and continuous units are silent,AC intermittent units buzz on operation.
• VoltageTolerance: +-10%.
• Powered by: Internal solenoid.
• Monitoring: (Optional) Single: Latch only, Double: Latch & solenoid.
• Duty: Fail-safe or fail-secure (convertible without additional parts). DC power supply required for fail-safe operation.
• Jaw Strength: 907kg (2000lbs).
• Case: 85.6mm x 28.6mm x 41.6mm. Zinc aluminium alloy.
• Mechanism: Stainless steel internal blocking mechanism.
• Strike Opening: 36.5mm x 15.9mm x 12.7mm. Stainless steel bolt retainer jaw.
• Door gap: Minimum 3mm (1/8), operational door gap 3-5mm.
• Faceplate: Aluminium. 123.7mm x 31.8mm. Flat.
• Finishes: Satin Anodised Aluminium.
• Subcover: Basic subcover lip will suit a 44.45mm (1 3/4) thick door that closes flush with jamb edge. For extended bolt-on subcovers see ordering codes.
• Standards: ANSI/BHMA 156.5 Grade 1. UL Listed for burglary resistance.
