RGL white plastic, DDA push button with active 360 operation
£20.52
£17.10
SKU
EBPP02P/DDA
- This product is available to order. The lead time is normally 7 – 9 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
![Free Delivery](https://doorentrydirect.com/static/version1718780025/frontend/Mageside/DoorEntryDirect/en_GB/Mageside_DoorEntryDirect/images/free_delivery.png)
- Free Delivery on orders over £50
- Applies to orders for IN STOCK items totalling £50 ex. VAT

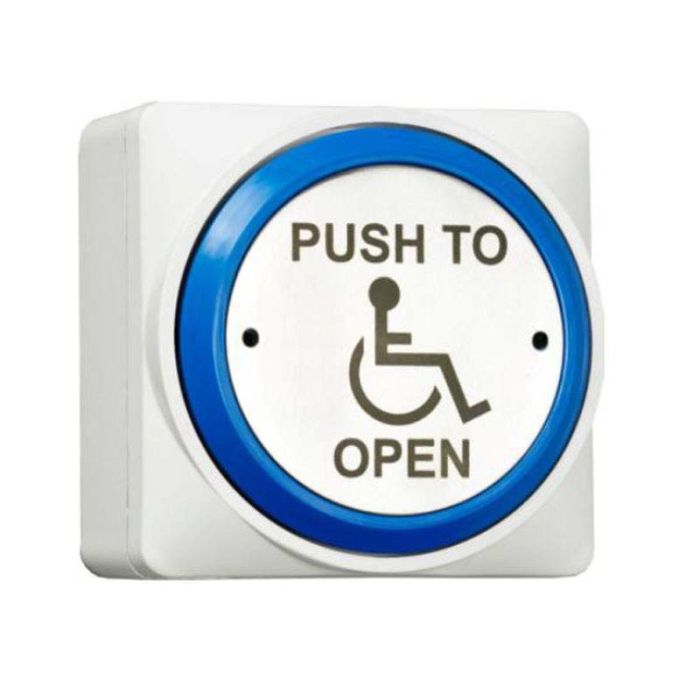

RGL EBPP02P/DDA white plastic, DDA push button with active 360 operation
RGL White plastic, standard DDA stainless steel exit push plate
This blue DDA exit button is marked PUSH TO OPEN with a disabled access symbol.
It is made from plastic and can be installed either flush or surface.
The button has an all active, large 360 degree push plate, which means that the lock release will be activated when pressure is applied on either of its points.
Features
- DDA Compliant
- All active 360 degree push plate
- Ideal for general areas
- Complies with BS8300
- IP55 rated
Technical Data
- Voltage: <30 V DC/AC
- Current: 4 Amps @ 30V AC/DC
- Operations: >1 million
- Contacts: Double Pole NO & NC
- Indoor use only
Dimensions | |
94 x 94 x 36 mm (hwd) |
Brand | RGL |
---|---|
Size | 100mm (square) |
Product Type | Egress Button (& switches) |
Switching | Changeover (2 Pole NO, C, NC) |
Operation | Push Button - DDA |
Finish | Plastic |
