HIK Touch and Display Module for Modular Door Station
SKU
DS-KD-TDM
- This product is available to order. The lead time is normally 3 – 5 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
HIKVISION DS-KD-TDM Touch and Display Module for Modular Door Station. Includes dial number display, pin code and card unlock, contact list and ad display

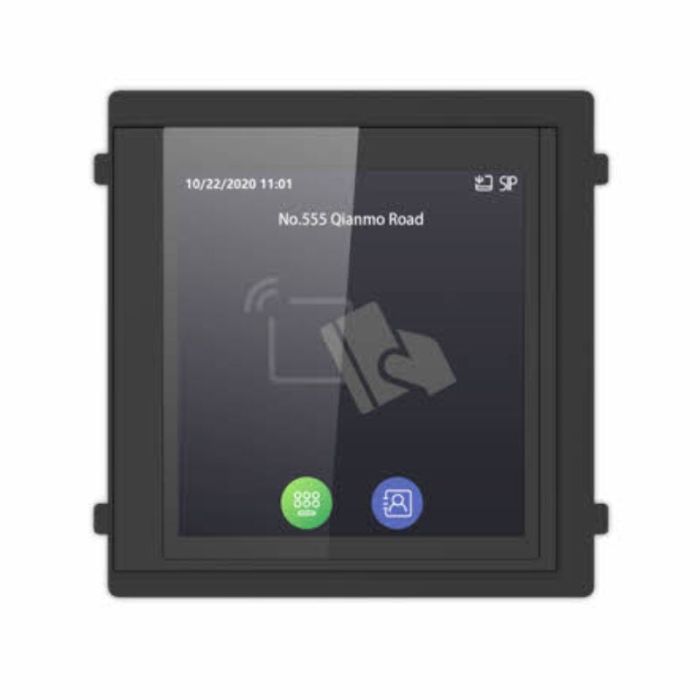

HIKVISION DS-KD-TDM Touch and Display Module for Modular Door Station
Modular touch and display module for door stations. Requires mounting bracket.
Display module with 4 inch touch screen. Includes dial number display, pin code and card unlock (mifare), contact list and advertisement display.
Features:
- Modular
- Mounting: surface/flush
- 4 inch touch screen
- Dial number display
- Pin code & card unlock
- Card type: Mifare
- Contact list
- Advertisement display
- Stores and searches contact list
- Multiple languages
Technical Specifications:
- Requires mounting bracket
- Card reading frequency: 13.56 MHz
- Protection Level (IK): 08
- Ingress Protection Level (IP): 65
- Operating humidity (%): 10 to 95
- Operating temperature (C): -20 to +60
- Power consumption: 4 W
- Power Supply: 12 VDC, supplied by the main module
Dimensions:
- 100 x 100 x 35 (hwd mm)
| Brand | HIK |
|---|---|
| Accessories & Options | Panel Option |
