Fermax VDS Direct City Audio Panel

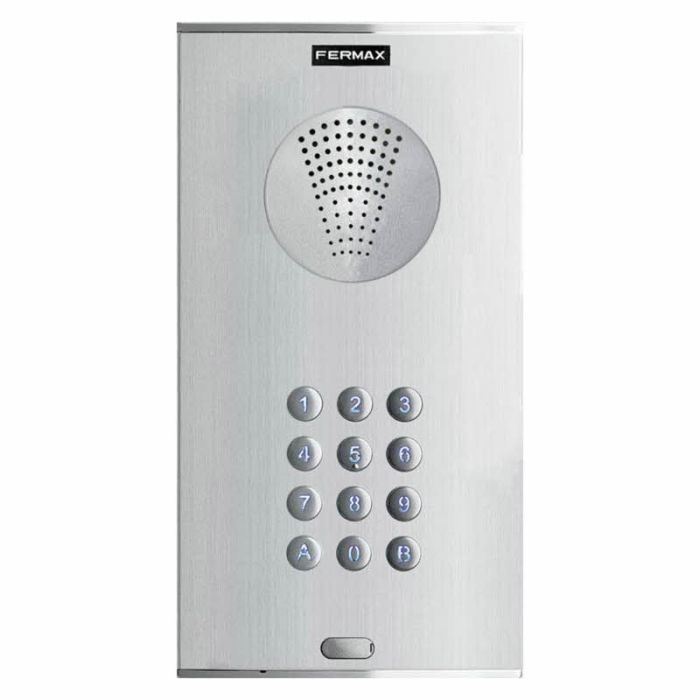

Fermax 7308 VDS Direct City Audio Panel

CityLine is the "continuous profile" outdoor panel line for buildings. Installed in the accesses to the building, they enable communication with homes, door opening, guard unit call, etc.

This panel model is more robust, more luxurious and higher design and functional quality. The design, in its video entry version, includes audio and video functions in the same module.

Simplified installation audio and video door entry system that does not use house call wires. The call is made by transmission of a digital call code generated by the VDS amplifier.

VDS amplifier comes with voice synthesizer as standard issue. When the door release is activated a message is heard: "The door is open, please close the door behind you".

The home terminals require simple programming done from the outdoor panel. By means of this programming a call code is assigned to each terminal (telephone or monitor).

Technical Specifications:

• Technology: VDS
• Colour: aluminium
• Dialling keypad
• Two-way volume control
• Communication is private
• Operating temperature (C): -10 to +60
• Maximum distance from first access to last home: 200 m
• Wiring: Audio: 3-wire bus, Video: UTP CAT5 / 5 wire / 3 wire + Coaxial (video)
