Fermax Skyline OneToOne Module V with Inductive Loop

Fermax F-7452 Skyline OneToOne Module with Inductive Loop

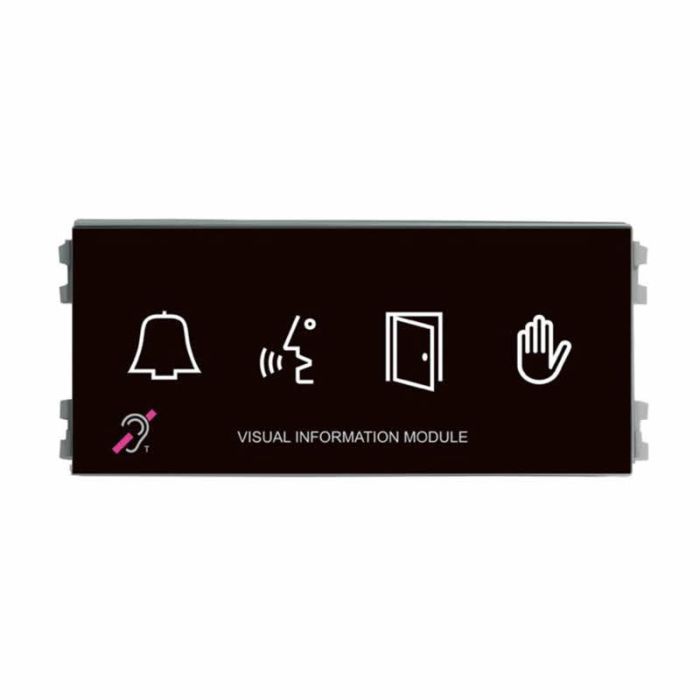

The Fermax F-7452 is a V-size Skyline module combining the OneToOne status indicator with an integrated inductive loop for hearing impaired users. The module displays panel status via 4 LED icons indicating call, conversation, door opening and channel busy states. All sounds and audio reproductions from the amplifier are transmitted through the inductive loop to compatible hearing devices, ensuring accessibility compliance at the entrance panel.

This module fits into any Skyline frame and is compatible with both VDS and DUOX PLUS systems. It occupies one V-size slot in the Skyline modular panel configuration.

Key Features

• Integrated inductive loop for hearing impaired accessibility
• 4 LED status icons: Call, Conversation, Door Opening, Channel Busy
• V-size module for Skyline frames
• Compatible with VDS and DUOX PLUS systems
• Audio from amplifier transmitted via inductive loop
• Clip-on installation into Skyline frame

Technical Specifications

• Protection: IP33 / IK06
• Power supply (VDS): 18 Vdc
• Power supply (DUOX): B, B bus powered; loop powered by RG1 grid
• Consumption VDS: Audio active 350mA, maximum 1A
• Consumption DUOX: Audio active 315mA, maximum 1A
• Operating temperature: -25 to +70 degrees C
• Module size: V (single height)

Dimensions

• 47.5 x 105.2 mm (W x H)
