Fermax AC Electric Lock Commander
£47.04
£39.20
SKU
F-3264
- This product is available to order. The lead time is normally 30 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
- Free Delivery on orders over £50
- Applies to orders for IN STOCK items totalling £50 ex. VAT

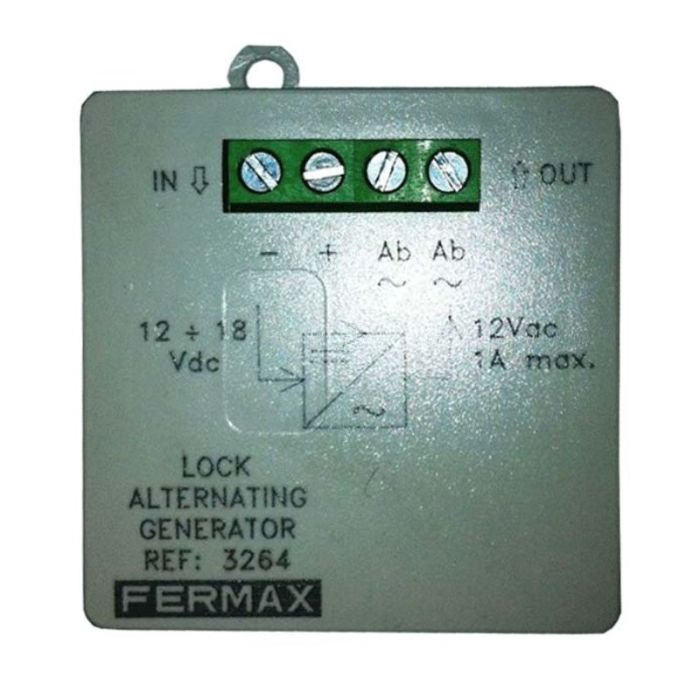

Fermax F-3264 Alternating Lock Release Activator — converts DC to 12 Vac for AC electric strikes
Fermax F-3264 AC Electric Lock Commander / Alternating Lock Release Activator
The Fermax F-3264 is a DC-to-AC converter that transforms a continuous (DC) voltage signal into an alternating (AC) signal, enabling 12 Vac electric strikes to be used in Fermax 4+N/MDS, BUS2 and VDS door entry systems that do not have an alternating power source installed. It is required whenever an AC electric lock is used with these systems.
Key Features
- Converts 12-18 Vdc input to 12 Vac output
- Compatible with 4+N/MDS, BUS2 and VDS systems
- Current limited to 1 A
- Operating time limitation of 20 seconds
- Compact form factor for mechanism box installation
Technical Specifications
- Input voltage: 12-18 Vdc
- Output voltage: 12 Vac
- Maximum current: 1 A
- Operating time limitation: 20 seconds
- Compatible systems: 4+N/MDS, BUS2, VDS
- Certifications: CE
Dimensions
- 44 x 44 x 16 mm (body size)
| Brand | Fermax |
|---|
