Comelit Switch 10 Button Front Plate in AISI 316 Stainless Steel
£655.20
£546.00
SKU
IX0110
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

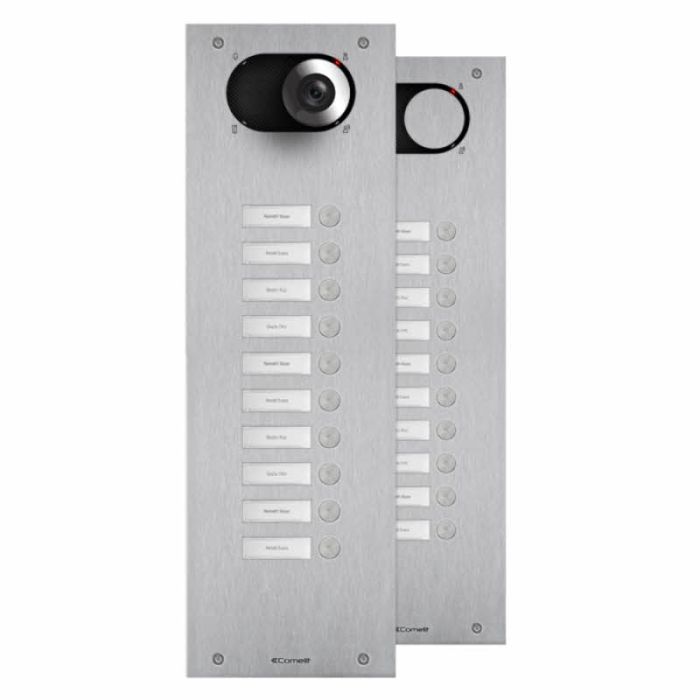

Comelit IX0110 Switch front plate with 10 pre-fitted buttons in 2.5 mm brushed AISI 316 stainless steel. IP54, IK08 rated.
Comelit IX0110 Switch Front Plate with 10 Buttons in Stainless Steel
The Comelit IX0110 is a monoblock front plate for the Switch entrance panel range, manufactured from 2.5 mm thick brushed AISI 316 stainless steel. It is supplied with 10 pre-fitted, pre-wired mechanical push-buttons and white LED nameplate backlighting. The adapter art. 1250U is included, allowing use of either an audio or audio/video module depending on the wiring system applied (Simplebus digital 2-wire or ViP). Nameplates are replaceable from the front without opening the unit. Requires a separate flush-mounted box (IX9152) or surface-mounted casing (IX9162) for installation.
Key Features
- 10 pre-fitted, pre-wired mechanical push-buttons
- 2.5 mm thick brushed AISI 316 stainless steel construction
- White LED nameplate backlighting
- Front-accessible nameplate replacement
- Echo cancelling audio technology
- Adapter art. 1250U included for audio or audio/video module flexibility
- Compatible with Simplebus 1, Simplebus 2 and ViP systems
- Flush-mounted or surface-mounted installation with dedicated accessories
Technical Specifications
- Type: Monoblock front plate
- Material: Brushed AISI 316 stainless steel
- Plate thickness: 2.5 mm
- Number of buttons: 10
- Button type: Mechanical push-buttons
- Backlight colour: White LED
- Protection class: IP54
- Vandal resistance: IK08
- Operating temperature: -25 to +55 degrees C
- Operating humidity: 25 to 95% RH
- Environmental class: III
- Included adapter: 1250U
- Compatible flush-mounted box: IX9152
- Compatible surface-mounted casing: IX9162
- Compatible audio/video units: 1682, 1682HVC, 4682HD, 1621, 1621VC, 1622, 1622VC, 4680C, 4681
Dimensions
- 475.5 x 150 x 2.5 mm (H x W x D)
| Brand | Comelit |
|---|---|
| Audio or Video | Video |
| Trade Button | Trade Button - NO |
| Call Buttons | 10 call buttons |
| Mounting | Surface Mount |
| Finish | Stainless (brushed) |
| Access Control Options | None |
