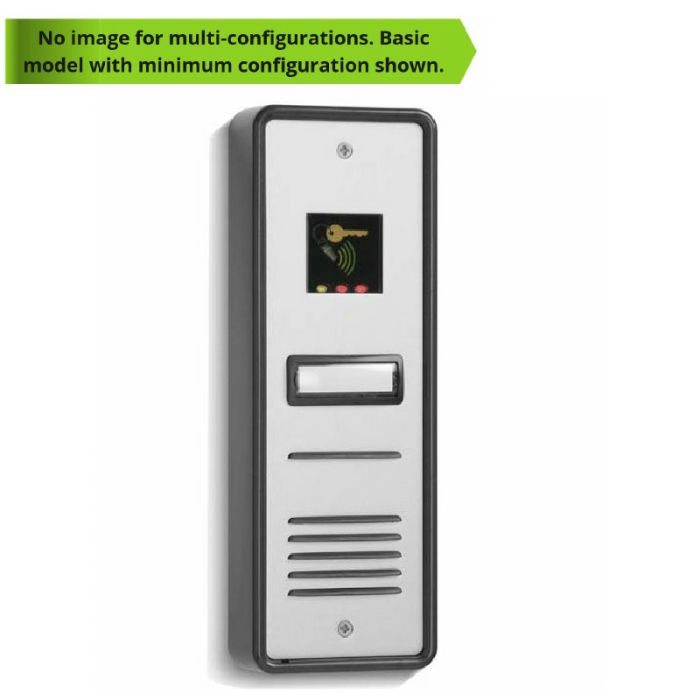

Bell 7 Button Surface Standard Audio Panel with Proximity

Bell - CSPP-7 7 BUTTON PANEL + PROX READER

The Bell CSPP-7 is a 7 button audio door entry panel with integrated Paxton compact proximity reader, designed for secure access control in multi-user buildings. The panel is manufactured from 3 mm anodised aluminium or 2.5 mm 316 marine grade stainless steel, with a grill protecting the speech unit and a Lexan window protecting the reader. The system supports up to 10,000 keyfob users and includes a starter pack of keyfobs. Programming and user management are performed using function cards and a shadow card system. The panel is supplied with a low-profile surface mounting box as standard, with an option for flush mounting. For panels with more than 7 buttons, the vandal resistant style is recommended.

Features

• 7 call buttons
• Surface mount (flush mount option available)
• 3 mm anodised aluminium or 2.5 mm 316 marine grade stainless steel
• Integrated Paxton compact proximity reader
• Shadow card system for user management
• Starter pack of keyfobs included
• Custom engraving available

Technical Specifications

• Audio only
• Power supply: 12V DC
• Lock output: Fail-secure (default), 5 second timed
• Programming: Function cards
• Reader protected by Lexan window
• Cabling: Bell Audio 4 + n

Dimensions

• Panel: 470 x 120 mm (h x w) approx
• Back box: 459 x 110 x 40 mm (h x w x d) approx
