Alpro 24VDC ANSI PTL fail open, mon. short/long f.plate 25mm lip

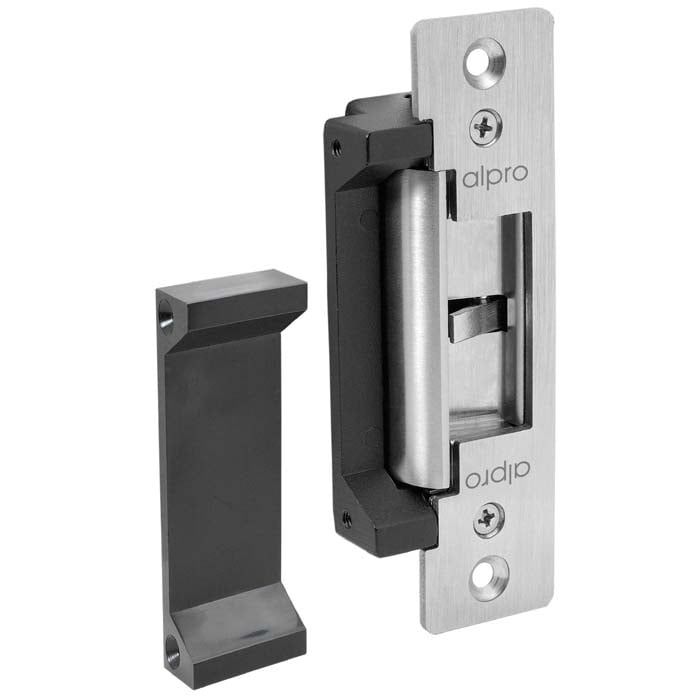

Alpro EL903M 24V DC ANSI PTL Fail Open Monitored Strike

The Alpro EL903M ANSI electric strike is a compact monitored electric strike with long or short faceplates for use in metal and timber applications. An extension lip is also included within the kit. It has a 35mm deep, compact stainless steel body design. This electric strike includes monitoring via a microswitch on the keep and a full fixing kit is also supplied.

The EL900 ANSI electric strike is available in 12 and 24V DC models both fail safe and fail secure and boasts an innovative changeover of function from fail safe to fail secure with the removal of just one small screw. An additional park hole is provided for safe storage of the screw enabling the function to be changed as required. Accessories - Long and short ANSI stainless steel faceplates, 25mm extension lips and mounting kit all supplied as standard.

Key Features

• Independently tested to 500,000 cycles
• Low current consumption
• Includes long and short stainless steel faceplates
• Short faceplate for aluminium doors, long faceplate for timber
• 24V DC Fail Open (PTL)
• Microswitch on keep for monitoring of lock status
• Reversible operation (can easily be changed from fail unlocked to fail locked)
• Includes 25mm extension lip

Technical Specifications

• Voltage: 24V DC
• Current draw: 150mA (24V DC)
• Body depth: 35mm
• Function: Fail Safe / PTL (reversible to PTO)
• Monitoring: Monitored (microswitch on keep)
