Adams Rite Surface Mounted Mini Shearlock 12-24V DC

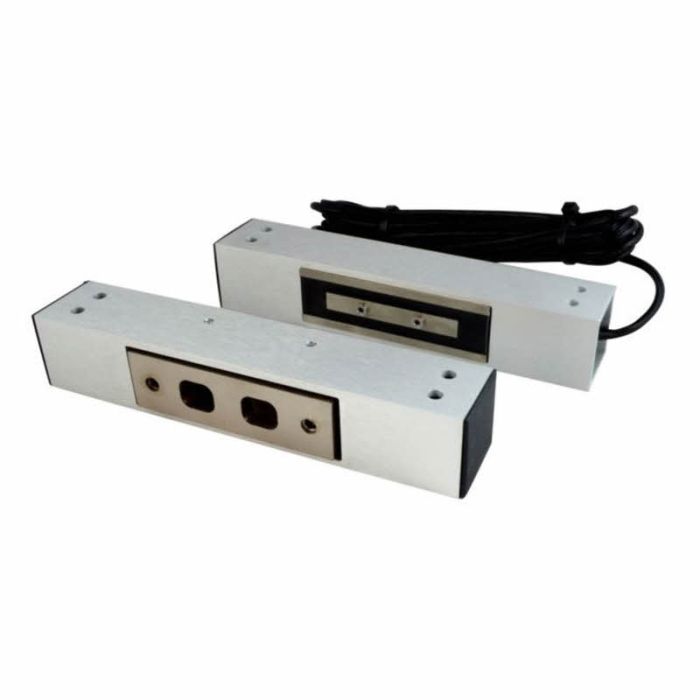

Adams Rite 1354-0201 Surface Mounted Mini Shearlock 12-24V DC Brushed Silver Anodised

The Adams Rite Armlock 1354 is a mini Electro-Shearmagnet to facilitate remote access where minimal intrusion into the environment is required. It is designed for single action internal doors or external doors where a form of cover is situated above the doorway to prevent direct weather ingress.

Suitable for use on aluminium, timber and steel doors, this magnet can also be installed on glass door when used in conjunction with the Adams Rite Glass Door Bracket (sold separately). It has a nominal 1500kg shear holding force and adjustable locking time between 1 and 30 seconds. It can be Can be fitted into the head or vertical locking stile and it is CE marked as well as having a 1 year manufacturer's guarantee.

Features

• Nominal 1500kg shear holding force
• Dual coil 12vDC or 24vDC
• Suitable for door gaps up to 8mm
• Adjustable locking time 1-30 secs
• Glass door fixing bracket available
• Surface mounted (mortice versions available)

Dimensions:

• 38 x 200 x 38 (hwd mm)
